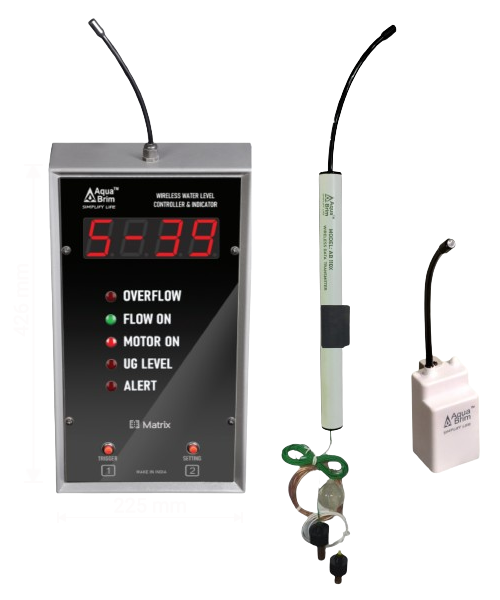

Model: MATRIX
Wireless Industrial Pump Automation & Control System
These wireless controllers are specifically designed to automate industrial pumps installed at Office/ societies/ Malls/ commercial space/ hospitals/ Hotels etc.
Description
These wireless controllers are specifically designed to automate industrial pumps installed at Office/ societies/ Malls/ commercial space/ hospitals/ Hotels etc. It can automate the pumps to fill in multiple overhead tanks and having capability to send the data to remote server for online monitoring and control. It has many intelligent features and essential safety features for smooth operation of pumps. Many add-on features are available which can be activated as per site requirement.
Highlights
Wireless Technology
Makes matrix cost effective & easy for installation and maintenance
Dry Run Protection
If while running motor water flow in storage tank is interrupted for more than 2 minute it will stop the motor and tries 2 times after the interval of 2 minutes
Data Download
Historical data for upto 6 months can be downloaded in numerical and graphical form.
Remote Setting & Control
Various setting parameters can be set remotely through server and machine can be controlled remotely.
Dual Motor Control
It can control 2 motors in various combination as per requirement at site
Motorised Valve Status
It display the motorised valve open/ close status if valve is installed near the tank
Pressure based operations
It can display pressure in the water supply line and operate the motor within set pressure range
SMS Alert
SMS alerts can be set for Low, Full & Overflow events to multiple numbers through Web based monitoring System
High/Low Voltage Protection
If the supply voltage is out of range 170- 250 V, it stops the motor
Add on Features
Dual motor feature
RS485 MODBUS output
Wifi hardware feature
Timer hardware feature
Motorised Valve feature
